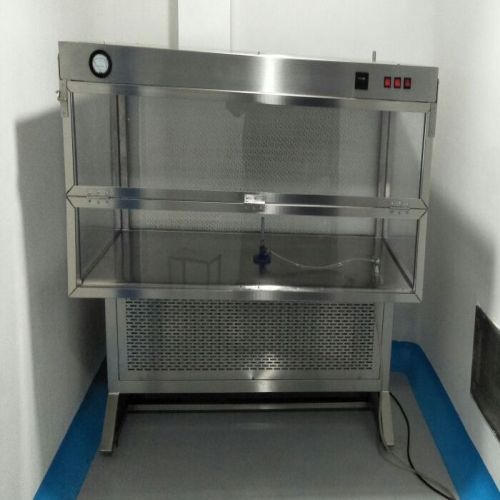

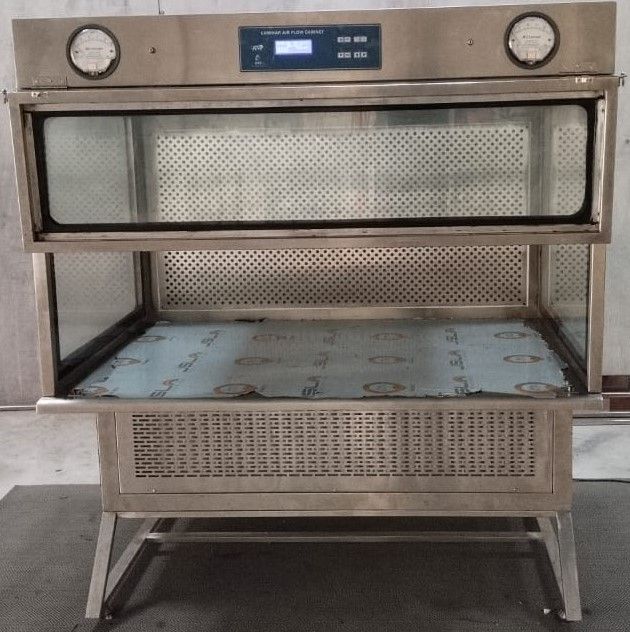

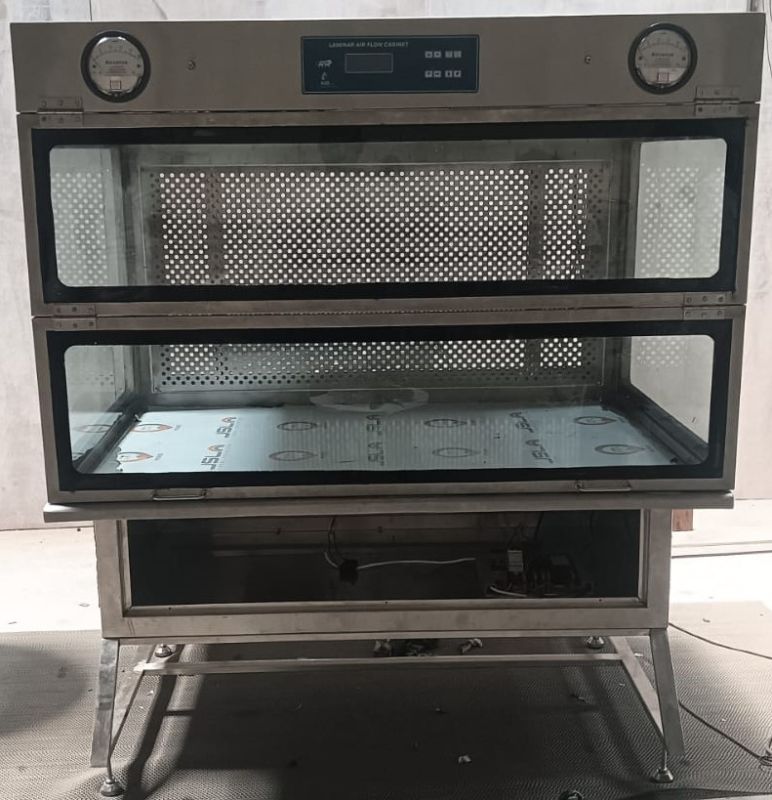

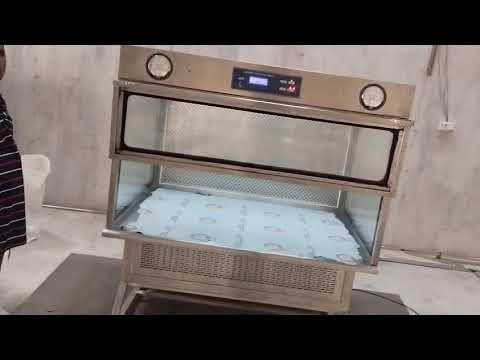

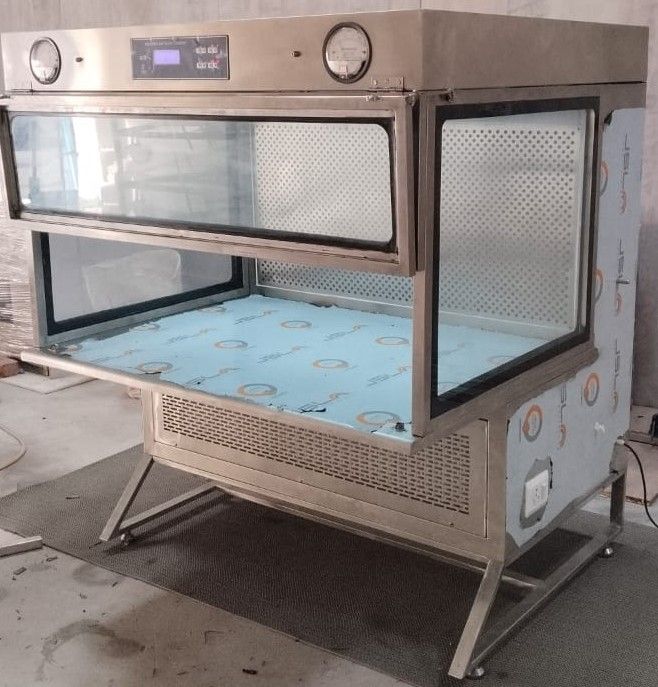

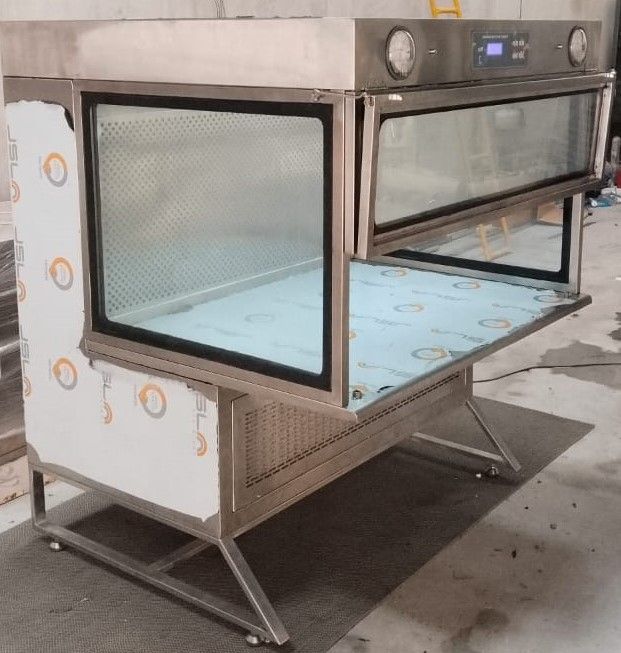

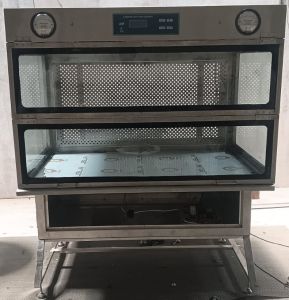

Horizontal Laminar Air Flow Unit

Supply price for SS 304 Table top Horizontal

LAF unit

• The basic material of construction is

SS 304, 1 MM thick sheet

• Surface finish: No. 4 Matt Hairline

Finish

• This is single skin execution and

system is mounted on dismountable

tubular SS 304, 40x20x1.2mm thick

pipe stand with adjustable leveling pad.

• It has provision for mounting

→ HEPA filter H – 14 Grade

→ Pre air filter EU – 4 Grade

• LED light

• S.S. 304 PAO injection port

• Microprocessor based control system with a digital LCD display having on/off buttons for

LED Light, UV Light, Blower etc.

• Motor blower

• Magnehelic differential pressure gauge 0-25 MMWC

• UV light with hour meter whose readings can be shown in LCD display in digital form

• S.S. 304 Atmospheric Nozzle

• Toughened glass foldable front door

• 5/15 Switch socket for external equipment

• SS work table

• SS 304, 40x20x1.2mm square pipe stand at bottom of work table

• SS 304 Leveling legs for height adjustment of the working table

• Single phase operating power supply

• Air cleanliness level: ISO 5

• Air Velocity: 0.45±0.05mps below 6 inches of HEPA face

• Air Flow: Horizontal

• Noise Level: Less than 70db A when ambient is not more than 55db A

• Light Intensity: 200-300 lux

• Standard followed: ISO 14644-1
