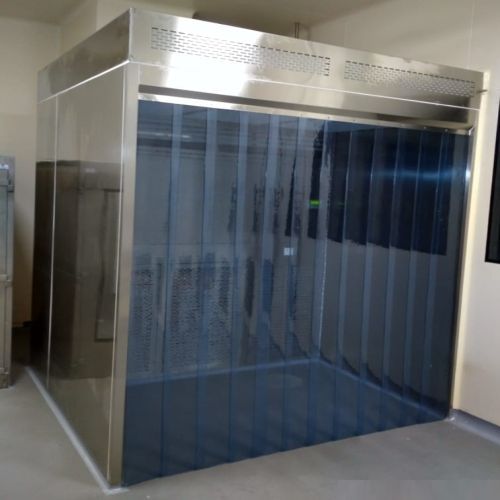

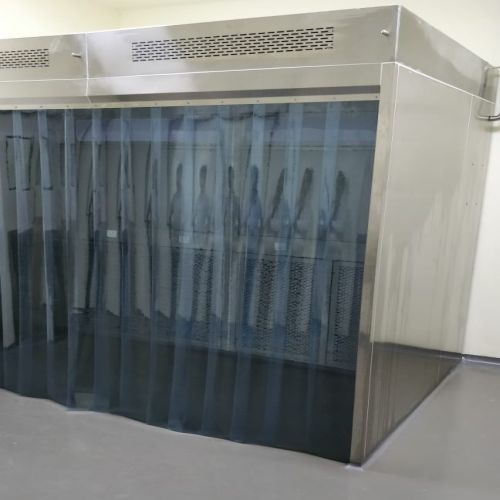

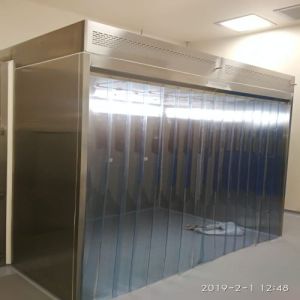

Sampling Dispensing Booth

Sampling/Dispensing Booth

Assembled dispensing booth, also called sampling or weighing booth, down flow booth or powder containment booth, is dedicated purification equipment for sampling, weighing and analysis. It can contain powders and particles within work area and prevent operator from inhaling them

• Negative pressure design contains powder and particles inside booth, not overflowing booth
• Stainless steel construction make booth clean and hygienic
• Assembly design makes it possible to enter completed clean room
• Complete with user’s manual, assembly drawing, quality certificate, test report, etc.
• One set of pre-filter and medium efficiency filters as spare parts

Technical specification

• Cabinet fabricated in SS 304/316
• Air flow direction:    Down
• Design according to GMP-guideline easy to clean and to disinfect.
• Specially design centrifugal or back-ward curved type air blower
• Magnehelic differential pressure gauge

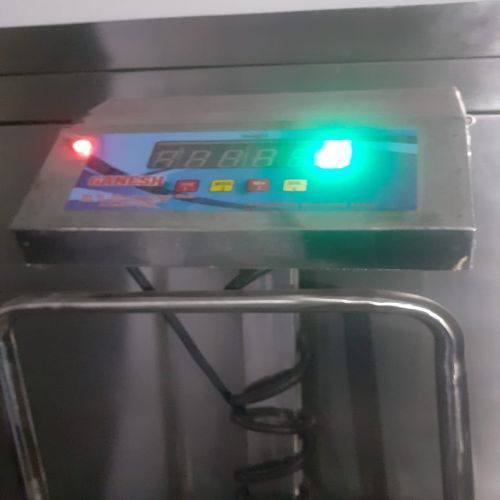

• Soft touch LED controller for blower/light/pressure display
• Sensitive oxygen sensor with safety hooter
• Mini-plate HEPA filters H-14, 99.997% down to 0.3µ.
• Pre-filter non-woven, HDPE mesh EU-04 95% efficiency 5 µ
• Florescent light
• PAO port/atmospheric nozzles
• Sound level minimum 65db on scale
• Power supply single phase 220v 50 HZ
